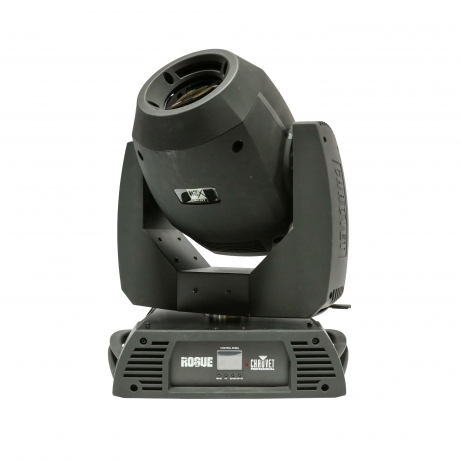

Chauvet Professional Rogue R2X Spot
Description
Rogue R2X Spot offers incredible value with a stunning range of colors and effects, all supported by professional quality engineering. Rogue R2X Spot builds on the features of the R1X Spot by adding gobo-morphing technology and two variable scrolling color wheels for an unlimited number of shape-changing and split-color effects. Rogue R2X Spot uses a powerful 300 W LED light source in a 16.5° beam angle for a brilliant light that creates an unparalleled audience experience.
Designed for punchy spot looks and dynamic effects
Built for live production, touring, and installed entertainment lighting, the Chauvet Professional Rogue R2X Spot delivers tight, high-impact beams and fast, repeatable movement (up to 540° pan and 250° tilt, with selectable range limits). The 300 W cool-white LED engine is rated at 7,836 K with a 50,000-hour life expectancy, and provides up to 23,000 source lumens (11,000 output lumens) with measured illuminance of 9,187 lux at 5 m.
Color, gobo morphing, and beam shaping tools
Two independent color wheels (each with 7 colors plus white) support split-color looks and continuous scrolling at variable speeds, making it easy to create sweeps, chases, and layered color effects. Two gobo wheels expand texture options: one fixed slot scrolling wheel and one rotating, interchangeable, scrolling wheel with indexing and continuous scroll. Perfect gobo morphing between gobo wheels adds smooth transitions between patterns for more cinematic movement and evolving looks.
For additional control, Rogue R2X Spot includes a motorized focus system plus an iris, a motorized frost, and a motorized rotating 3-facet prism. Electronic shutter and dimmer control support clean fades (16-bit dimming) and strobing from 0 to 22 Hz, with Move-in-Black for cleaner transitions.
Control, camera-friendly operation, and connectivity
Rogue R2X Spot supports both simple and complex DMX channel profiles for programming flexibility, and is RDM enabled for remote addressing and troubleshooting. Selectable PWM options (600 Hz, 1,200 Hz, 6,000 Hz, 15,000 Hz) help maintain flicker-free performance on camera, and selectable LED maximum output can be used to match legacy Rogue R2 Spot fixtures in mixed rigs.
Power and data connections are designed for professional workflows, with Neutrik powerCON power input/output for linking, plus 3-pin and 5-pin DMX input/output for easier integration into existing systems.
Form factor and build
Housed in a high-impact flame-retardant polymer enclosure, the fixture measures 16.1 x 13.5 x 19.25 in (409 x 343 x 489 mm) and weighs 47.8 lb (21.7 kg), making it a solid choice for truss-mounted rigs and permanent installs where durability and consistent output matter.
Additional Details
| Ships From: | United States |
| Manufacturer: | Chauvet |
| Condition: | Good |
| Model: | ROGUER2XSPOT |
| Item #: | 43676 | 4Wall/UsedLighting.com Owned |
| Tags: | Moving lights, Leds, Chauvet, Led moving lights |
- Intense 300 W LED light engine for punchy, bold beams
- Perfect gobo morphing between gobo wheels
- Two color wheels with 7 colors, split color ability, and continuous variable speed scrolling
- Two gobo wheels: one fixed slot scrolling wheel and one rotating, interchangeable, scrolling wheel
- Iris, 3-facet prism, and frost for beam control
- Beautiful 16-bit LED dimming for ultimate fade control
- Neutrik powerCON power input/output connections for power linking
- 3- and 5-pin DMX input/output connections
- RDM enabled for remote addressing and trouble shooting
- Selectable LED maximum output to match legacy Rogue R2 Spots
- Selectable PWM settings to maintain flicker-free operation on camera
- Simple and complex DMX channel profiles for programming versatility
- Light Source: 1 LEDs (CW) 300 W, (8.7 amps), 7,836 K, 50,000 hours life expectancy
- CRI: 72
- Beam Angle: 16.5°
- Field Angle: 16.5°
- Lumens – Source: 23,000
- Lumens – Output: 11,000
- Illuminance (total): 9,187 lux @ 5 m
- Selectable PWM: 600 Hz, 1,200 Hz, 6,000 Hz, 15,000 Hz
- Pan and Tilt: 540°/250°
- Pan and Tilt Ranges: 540°, 360°, 180° pan/250°, 180°, 90° tilt
- Colors (1): 7 + white, split colors, continuous scroll at variable speeds
- Colors (2): 7 + white, split colors, continuous scroll at variable speeds
- Gobos (1): 7 + open (7 metal), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
- Gobos (2): 8 + open (8 metal), continuous scroll at variable speeds
- Gobo Size: Gobo Wheel 1 (rotating): Positions 1, 2, 3, 4, and 7 (metal); size: 28.8 mm (outside), 23.8 mm (image), 0.5 mm (max. thickness)
- Gobo Size: Gobo Wheel 1 (rotating): Positions 5 and 6 (glass); size: 27 mm (outside), 24 mm (image), 3 mm (max.thickness)
- Framing Shutters: No
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Focus: Motorized
- Frost: Motorized
- Iris: Motorized
- Prism: 3 Facets, motorized, rotating
- Strobe Rate: 0 to 22 Hz
- Standalone Color Mixing: No
- Color Temperature Presets: No
- Move-in-Black: Yes
- Dimensions (single unit): 16.1 x 13.5 x 19.25 in (409 x 343 x 489 mm)
- Weight (single unit): 47.8 lb (21.7 kg)
- Exterior Color: Black
- Housing Material: High-impact flame-retardant polymer
- (1) Rogue R2X Spot
- (1) powerCON Power Cable
Shipping costs will be applied at checkout. Please add the item to your cart to calculate shipping. Note: If the item is being shipped to a country that is outside of the "Ships from" country, you will be responsible for any taxes, duties, or fees associated with your purchase.
Ships from: United States
Thinking of renting instead of purchasing? 4Wall Entertainment is a national leader in entertainment and theatrical lighting rentals. Our nationwide locations provide lighting and video solutions for projects of any size. Request a rental quote on this item now and receive a response within one business day.
