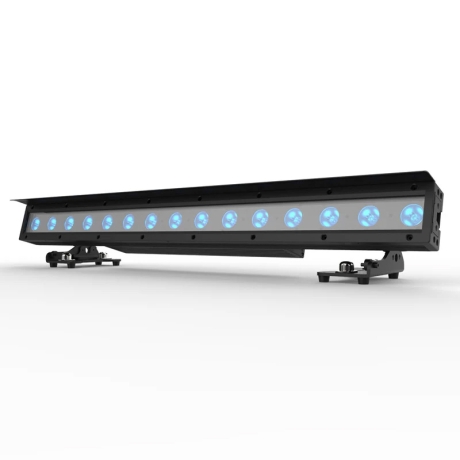

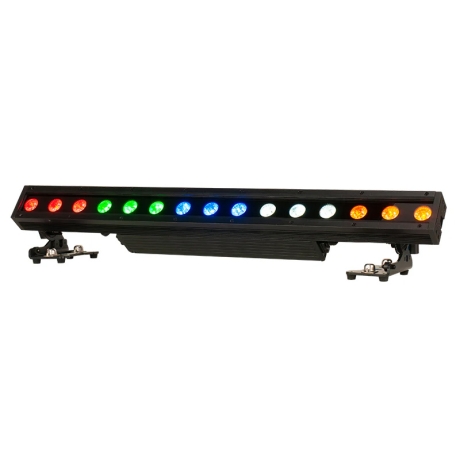

NEW ADJ 15 HEX BAR IP

The ADJ 15 HEX BAR IP is an IP65-rated, multi-functional linear wash fixture designed for indoor or outdoor use. Built around 15x 12W HEX LEDs (6-in-1 RGBWA+UV), it delivers bold color mixing, UV-enhanced looks, and smooth coverage for stages, façades, event production, and architectural accents, with a 25-degree beam angle for punchy, defined washes.

Output and Color Control

With 15 high-output HEX LEDs and a rated output of 14541 lux at 1 meter and 582 lux at 5 meters (Full On No UV), the fixture provides strong, consistent illumination for both close-range uplighting and longer throws. It also offers 63 built-in color macros, linear variable white temperature control, and multiple DMX control modes and dimming modes, so you can match looks across a rig or quickly dial in the right color and fade behavior.

Zone Control for Pixel-Like Effects

The 15 HEX BAR IP features 5 individually controlled sections with Zone Control, enabling chases, segmented color effects, and more detailed cueing than a single-zone linear wash. This makes it well suited for scenic backlighting, truss or stage edge washes, and dynamic wall grazing effects.

IP65 Connectivity and Touring-Ready Build

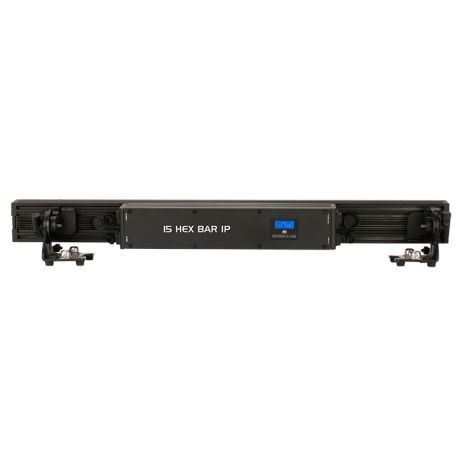

Housed in an all metal, black enclosure and rated IP65 (temporary outdoor use only), it is protected from elements such as dust, sand, moisture and liquids. On the rear panel it features IP65 rated 5-pin XLR DMX In/Out connections and Seetronic IP65 rated power locking In/Out connections to daisy chain power and data, with rubber protective covers to help shield connectors when not in use. An OLED display with touch buttons helps to easily navigate the functions of the fixture.

Mounting Flexibility and On-Camera Performance

The Sure-lock locking bracket system securely locks every 10 degrees for fast aiming and repeatable focus, whether the bar is used as a ground fixture or rigged. The 15 HEX BAR IP is flicker free for film and broadcast, making it a reliable choice for on-camera events and video production environments where clean dimming and stable output matter.

Beam Shaping

It includes a removable diffusion filter to change the beam angle, helping you soften the output for wider coverage when needed.

• LED: 15x 12W HEX (6-In-1) RGBWA+UV LEDs (50,000 hr.)
• Beam Angle: 25-degrees
• LUX: 14541 @ 1M, 582 @ 5M (Full On No UV); 14517 @ 1M, 581 @ 5M (Full On)
• IP65 rated, protects from dust, sand, moisture and liquid (Temporary outdoor use only)
• All metal construction with black housing
• Sure-lock locking bracket system (securely locks every 10-degrees)
• Flicker free for film and broadcast
• 63 Built-in Color Macros
• Linear variable white temperature control
• Dimension (LxWxH): 36” x 8” x 7.75” / 915x203x200mm
• Weight: 20 lbs. / 8.9 kg.
