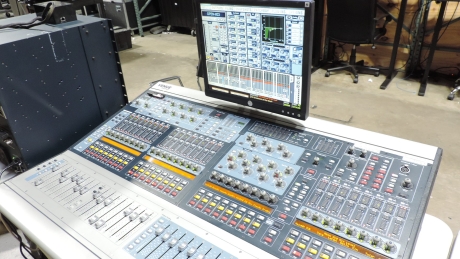

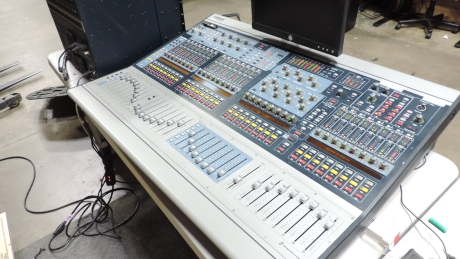

Avid D-Show Profile w/ Mix Rack 48

Description

Features

• Small footprint: 45.3" x 31.1" x 6.65" (1150 x 790 x 169 mm)
• 24 input faders, 8 output faders, one Mains fader
• Single row of assignable encoders
• Provides up to 128 inputs when integrated with FOH Rack and two Stage Racks
• Eight GPI inputs and eight GPI outputs allow Profile to send or respond to simple switch closures
• Eight assignable function buttons
• The input channel section provides immediate visual and tactile
• control in a familiar channel strip layout. Each channel features an
• independent, assignable encoder for quick adjustment of key parameters-such as gain, pan, compression, gate threshold, and aux send levels-without having to assign each channel to the console's central control section.
• Four fader banks allow easy access to the full 96-input capacity of the 24-fader D-Show Profile console.
• Multi-Function input faders offer access to all four banks of input faders as well as the dedicated effects returns. They can also be used as encoders for 1/3-octave graphic equalizers.
• View and adjust all parameters for a selected channel within the Assignable Channel Section (ACS). The ACS features dedicated controls for assigning and adjusting buses, auxiliary sends, onboard and plug-in EQs and dynamics processors, and more.
• View Mode controls provide immediate access to every D-Show software page-such as the inputs, outputs, fi ling, snapshots, patch bay, plug-ins, and options pages-at the push of a button. Preview and recall all snapshots with the rotary control.
• The D-Show Profile master section features assignable encoders to control numerous operations, including output pans and mono and stereo (PQ) matrix mixes. The encoders are also mapped for plug-in control-all parameters appear below each encoder in the six-character LCD display.
• The console features high-quality, touch-sensitive, 100-mm faders that can be selectively assigned as master controls for auxes, stereo (PQ) matrixes, mono matrices, subgroups, and VCA masters.
• The Master/Global section houses controls for the main left, right,
• and center/mono buses. All headphone and near-fi eld monitor controls are located near all solo status selections. Dedicated two-track, talkback, and noise sources-plus eight programmable mute
• The meter bridge offers a high-resolution display of the left, right, and center mono output levels, plus eight assignable output meters to display aux, stereo (PQ) matrix, mono matrix, and subgroup output levels. Additionally, the bridge provides high-resolution meters for ACS targeted inputs, which include independent meters for compressor and gate gain reduction displays.
