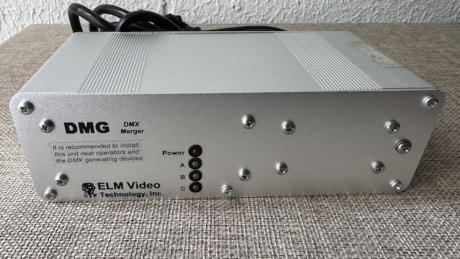

Elm Video DMG 2x1 DMX Merger
Description
This Elm Video DMG 2x1 DMX Merger shows minor wear and in like new condition.
The DMG is a 2, 3, or 4 input dmx merger. With 6 merge types the DMG merges (combines) two or more DMX signals or universes into one universe, by a selected mode type; HTP (Highest Takes Precedence), Append, Backup, LTP (Latest Take Precedence by Universe), LTPC (Latest Take Precedence by Channel), or LoTP (Lowest Take Precedence). With additional input options, 3 or 4 inputs, enables the DMG to merge up to four universes and/or provide multiple functions. By configuring several inputs in different mode types, each can perform a specific merge mode type. For example, input’s B and C could be configured to merge two universes into one universe using the HTP mode while input A could be configured to override both B and C once activated (i.e. a backup DMX source with auto switch over).
This item has been listed by a member of our worldwide community. Buying a brokered item like this is the perfect way to purchase hard to find equipment at a great price. All brokered item sales include a 72 hour (3 business days) quality inspection window. Once the item arrives, just let us know if you are unsatisfied- your purchase is guaranteed by UsedLighting.com!
Features
- Chassis: Anodized Aluminum .093" thick RoHS compliant.
- External Power Supply: +5VDC wall mount
- Voltage Input: 100 ~ 132 (or 240) VAC
- Current Output: 1 Amps (typical)
- Power: 5 Watts (typical)
- Polarization: Positive Center
- Output Connector: Locking Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
- Power Consumption: 2x1: Apx 160mA (output full source)
- Data Type: DMX (250Khz)

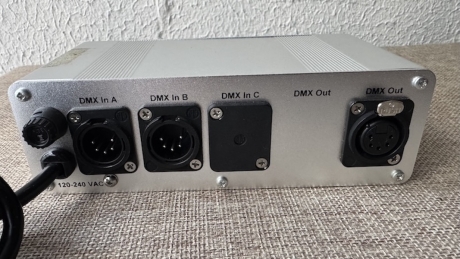

- Data Input: DMX - 5 pin male XLR
- Data Output: DMX outputs - 5 pin female XLR
- Dimensions: 3.7 x 6.7 x 2.1 inches
- Weight: 1.5 pounds
Additional Details
| Ships From: | Somerset, KY, USA |
| Manufacturer: | Other |
| Condition: | Like New |
| Model: | DMG DMX Merger |
| Item #: | 60710 (Brokered) |
| Tags: | Splitters & wireless, Mergers |
- (1) DMG 2x1 DMX Merger
A member from our team will reach out to the seller to determine the shipping cost and will contact you with the total cost for your approval. Payment will only be authorized, not processed, until the shipping cost is approved by you. Please note that if the item is being shipped to a country that is outside of the "Ships from" country, you will be responsible for any taxes, duties, or fees associated with your purchase.
Ships from: Somerset, KY, USA
