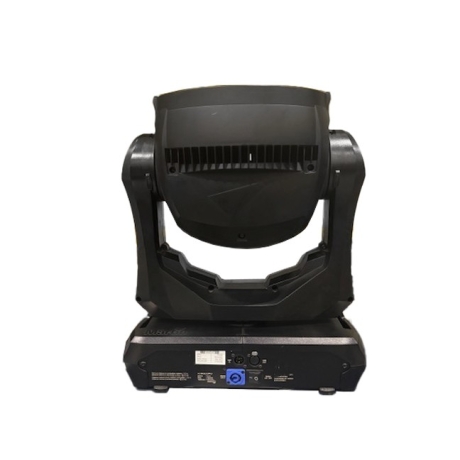

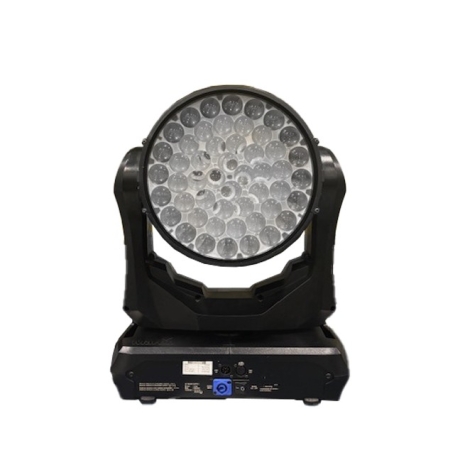

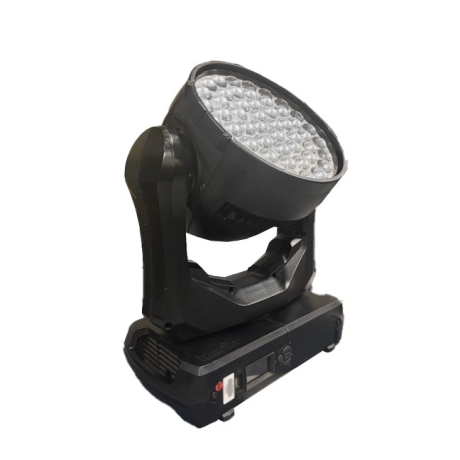

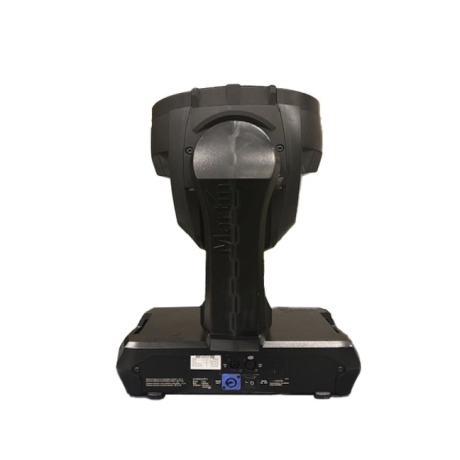

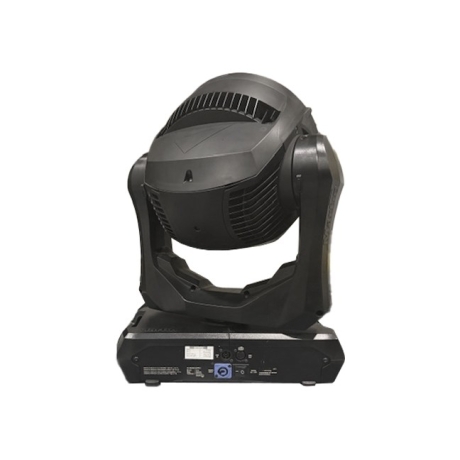

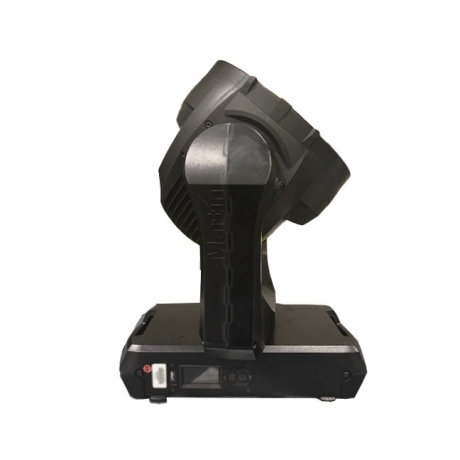

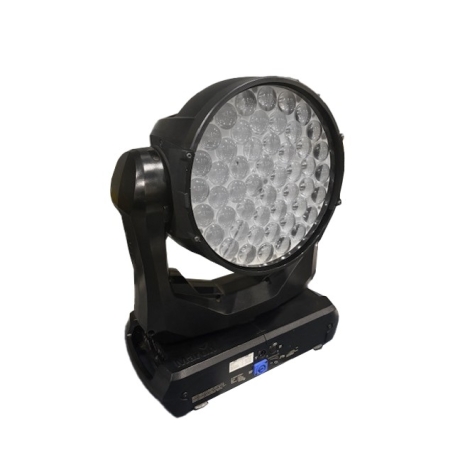

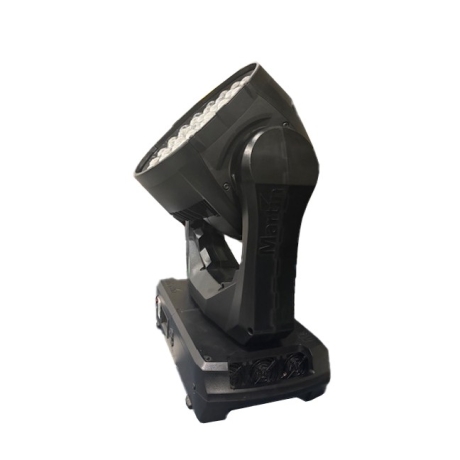

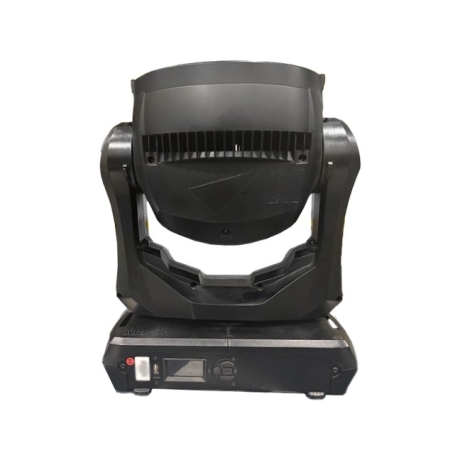

Martin MAC Quantum Wash

These units may show signs of heavy wear but are in good working condition. A dual road case is included with the purchase of 2.

The Martin MAC Quantum Wash is a compact RGBW LED moving head wash fixture built for professional stage, broadcast, and event lighting where you need both tight, punchy beams and smooth, even wash coverage from the same unit. Its 50 W RGBW LED engine and Martin optical system support a fast, motorized zoom (1:5) that transitions quickly between narrow beam looks and wide wash fields, with uniform color mixing across the output.

Color, Effects, and Control

The MAC Quantum Wash is designed for expressive looks with practical programming options. Martin’s ColorganicsTM system and an extensive palette help you build saturated colors and clean pastels, while variable color temperature control (2000 to 10,000 K) makes it easy to match cameras, scenic lighting, or other fixtures on a rig. For added visual texture, the Aura EffectTM provides eye-candy styling, and Beamtwister effects are created via the rotating front lens for movement and morphing in the beam.

• Color mixing: RGBW
• Beam effects: Beam twister, light and color morphing, color spin
• 'Color wheel' effect: 36 solid colors plus white, with variable-speed 'color wheel rotation' and random color
• Color ring effects: 36 split ring colors with variable-speed color wheel rotation effects
• Shutter effect: Electronic, with variable speed regular and random strobe
• Pre-programmed effects: Range of synchronized and independent color, intensity, beam twister and zone effects
• Electronic dimming: Four dimming curve options

Rigging-Friendly Design and Fast Movement

Built to be efficient on truss and in road cases, the fixture combines a very low weight, compact form factor with super high-speed movement for dynamic cues. Pan and tilt are smooth and configurable via the onboard control panel and DMX, with a wide 540° pan and 270° tilt range that supports flexible positioning in tight hangs and large rigs.

• Zoom: Motorized
• Pan: 540°
• Tilt: 270°
• Pan and tilt speed: Adjustable via onboard control panel and DMX

Dimensions and Weight

• Length: 452 mm (17.8 in.)
• Width (across yoke): 431 mm (17 in.)
• Height (maximum): 581 mm (22.9 in.)
• Height (head straight up): 511 mm (20.1 in.)
• Weight: 21 kg (46.3 lbs.)
