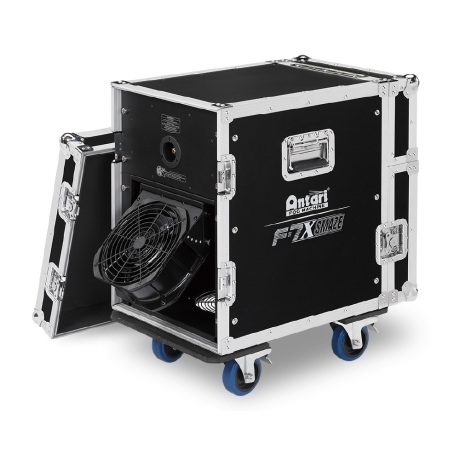

NEW Antari F-7X SMAZE
Description
Elevate your atmospheric effects with the Antari F-7X Smaze, an ingenious combination of fogger and fazer in one ultimate machine. With limitless possibilities, it seamlessly fuses two functions into a single powerhouse.
Designed for stage, event, and venue atmospherics, the F-7X lets you switch between dense fog output and a finer haze style effect to suit lighting looks, reveal beams, and build mood, all from one fixture.
2-in-1 Output Control for Flexible Looks
Use Fog Mode when you need maximum impact (fluid consumption: 150 ml/min at 100% output), or choose Faze Mode for longer, more efficient atmospheric coverage (fluid consumption: 28 ml/min at 100% output, up to 2.8 hours at 100% output). Warm-up time is approximately 7 minutes, so you can get to show-ready output quickly.
Professional Interface and Show Control
Operation is straightforward from the TFT-LCD touch screen, with support for multiple languages. For integration into lighting workflows, the unit supports Manual, Timer, and DMX512 control (3 DMX channels), plus optional Wireless and optional Wireless DMX. Connections include Neutrik powerCON TRUE 1 for power, and both 3-pin and 5-pin XLR for DMX.
Designed for Reliability and Safer Operation
Built-in voltage protection, fluid detection, and dual thermal cut-off technology (TCO) help support reliable use in demanding environments. It is rated for ambient temperatures from 0°C to 40°C (32°F to 104°F).
Fluid Capacity and Compatible Fluids

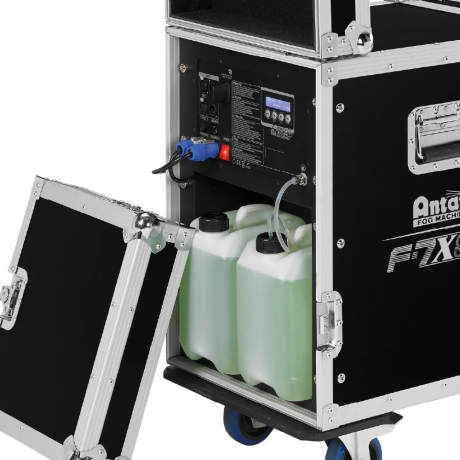

Two onboard 5-liter fluid tanks (1.32 gallon each) support longer runs and fewer refills. Compatible fluids include Antari FLG-5E Regular Dense and Regular Dissipating Fog Fluid, Antari FLH-5E Extremely Thin and Fast Dissipating Fog Fluid, and Antari FLZ-5E Super Dense and Super Long Lasting Fog Fluid.
Power and Physical Specifications
- Input voltage (US model): AC 100 to 120V, 50/60 Hz, 13.5A
- Input voltage (EU model): AC 220 to 240V, 50/60 Hz, 8.0A
- Rated power: 100V 1400W, 120V 1600W, 240V 1900W
- Dimensions (L x W x H): 728 x 428 x 719 mm (28.66 x 16.85 x 28.31 in)
- Weight: 53.0 kg (116.85 lb)
Additional Details
| Ships From: | United States |
| Manufacturer: | Antari |
| Condition: | Brand New |
| Model: | F-7X SMAZE |
| Item #: | 61510 |
| Tags: | Effects/efx, Foggers / hazers / snow |
- TFT-LCD Touch Screen
- Fluid Detection
- Built-In Voltage Protection
- Support Multi-Language
- Dual Thermal Cut-Off Technology (TCO)
- Input Voltage US Model: AC 100 – 120V, 50 / 60 Hz 13.5A
- Input Voltage EU Model : AC 220 – 240V, 50 / 60 Hz 8.0A
- Rated Power: 100V 1400W, 120V 1600W, 240V 1900W
- Warm-Up Time: 7 Minutes (approx)
- Fluid Consumption Fog Mode: 150ml/min (100% Output)
- Fluid Consumption Faze Mode: 28ml/min (100% Output)
- Fluid Tank Capacity: 5 Liters (1.32 Gallon) X2
- Compatible Fluid: Antari FLG-5E Regular Dense & Regular Dissipating Fog Fluid, Antari FLH-5E Extremely Thin & Fast Dissipating Fpg Fluid, Antari FLZ-5E Super Dense & Super Long Lasting Fog Fluid
- Operating Time: 2.8 hrs (100% Output) (Faze Mode)
- Ambient Temp. Range: 0°C – 40°C (32°F – 104°F)
- Control Methods: Manual, Timer, DMX512, Wireless (Optional), Wireless DMX (Optional)
- DMX Channels: 3 Channel

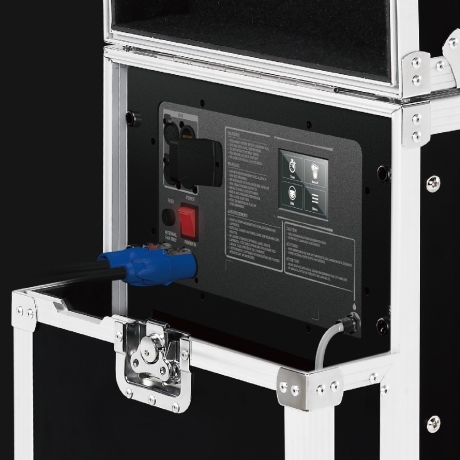

- Interface: Neutrik powerCON TRUE 1 (Power), XLR 3-Pin & 5-Pin (DMX)
- Dimension (LxWxH): 728 x 428 x 719 mm | 28.66 x 16.85 x 28.31 inch
- Weight: 53.0 kg | 116.85 lbs
- (1) F-7X SMAZE
- (2) 5 Liter Fluid Tank
