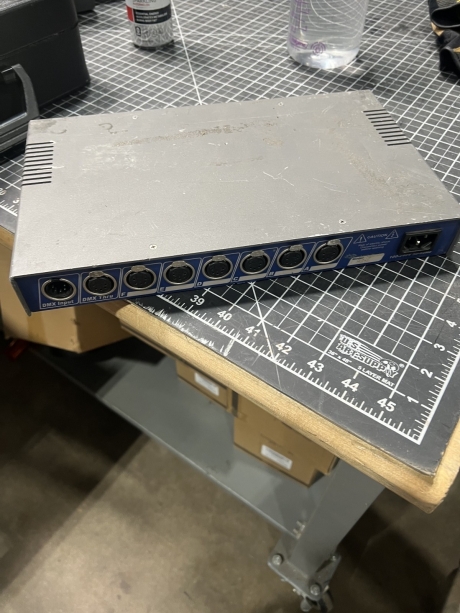

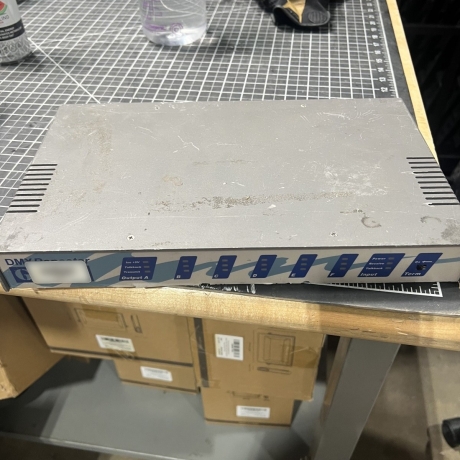

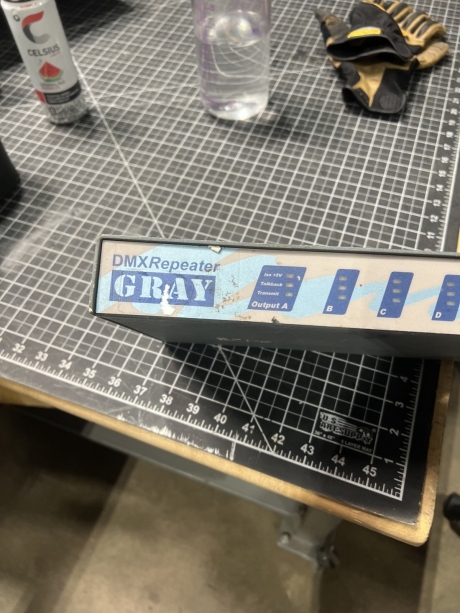

GRAY DMX Repeater, 5 Pin XLR (Pkg of 3)

This listing is for a Package of (3) GRAY 5-Pin DMX Repeaters. These units were used in rentals inventory and show signs of heavy wear. They are in good working condition. Power cables and cases are not included.

The GRAY DMX Repeater (5 Pin XLR) is an opto-isolated DMX splitter designed to distribute a single DMX signal to multiple lighting devices when clean daisy-chain wiring is not practical. Use it to feed dimmers, scrollers, or other DMX-controlled devices in a star configuration while helping protect your DMX source through electrical isolation.

Why Use a DMX Repeater

DMX rules require daisy chain style wiring with no breaks, stars, tees or unterminated ends. When this is not practical, a DMXRepeater can be used to properly distribute DMX to dimmers, scrollers or other devices in a star configuration. DMX Repeater can also used to electrically isolate DMX sources from controlled devices.

Key Features and Protection

• 5 Pin XLR connections
• Opto splitter with 1 input and 6 outputs for multi-run distribution
• 2500V opto-isolation to help isolate DMX sources from connected devices
• 250V fault protection on all inputs and outputs
• Self-resetting data link fuses
• DMX direct pass-thru connector and termination switch
• Status LEDs for quick signal and power checks

Mounting and Dimensions

Rack mountable. Dimensions: 13.2 x 7.8 x 1.75 in. (335 x 198 x 44mm).
