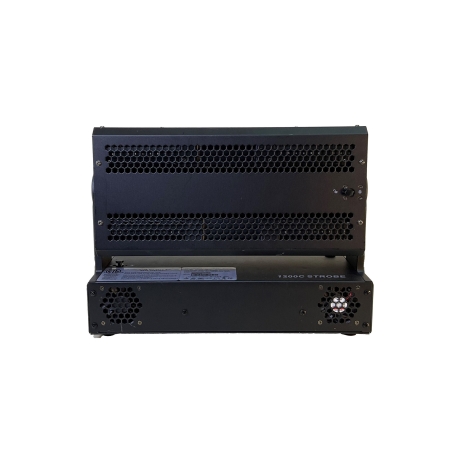

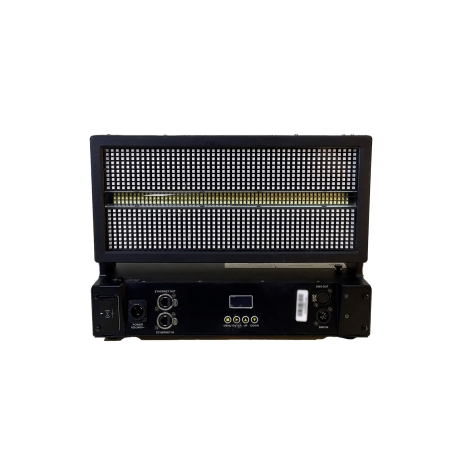

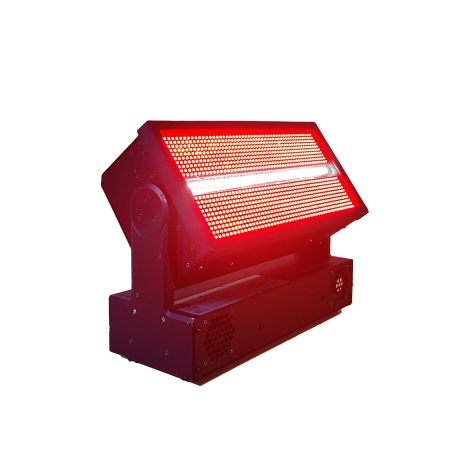

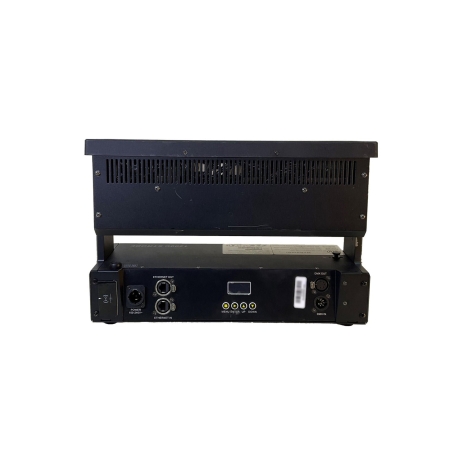

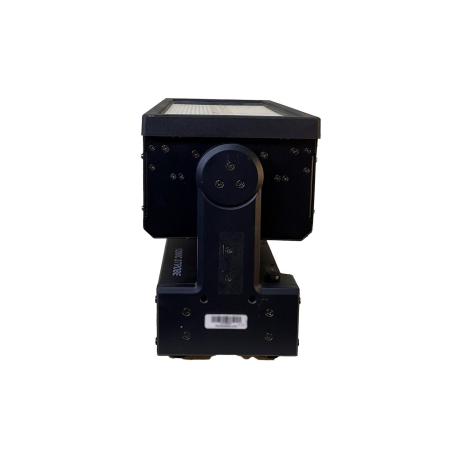

FINE 1200C Strobe
Description
Ships from outside of the United States
These FINE 1200C Strobes show signs of wear and tear, but are in good working condition. Power cables are not included.
The FINE 1200C STROBE is a high-power RGB and white LED strobe fixture that combines segmented flash effects, color washes, pixel graphics, and motorized tilt. Its compact design supports dynamic programming for concerts, stages, broadcast productions, and entertainment venues.
Segmented strobe and pixel-mapped looks
At the center, a 6500K white LED strobe tube is divided into 10 independently controlled segments for chases, bursts, and timing-based effects. Surrounding it, the RGB LED panels deliver 40 individually controlled pixel sections, making the fixture equally useful as a punchy strobe, a vivid RGB wash, or a pixel-mapped effects light.
Movement and control for programmed shows
Motorized tilt (182°) adds motion to strobe hits, washes, and pixel animations, helping you build layered looks without adding a separate moving yoke. For smooth transitions and accurate intensity control, the fixture uses 16-bit optical dimming with 65,536-step accuracy and a strobe rate of 1 to 25 Hz.
Effects, linking, and networking
Built-in effects provide adjustable timing, direction, shapes, gradients, and background dimming for fast show-building on site. Multiple fixtures can be linked horizontally to create expanded bitmap effects, ideal for wider stage looks and synchronized pixel graphics.
Connectivity and key specifications
- Control protocols: DMX512, ArtNet, sACN
- DMX connections: 3-pin XLR input/output (5-pin optional)
- Network connections: RJ45 input/output
- White LED source: 10W x 180 pcs (6500K)
- RGB LED source: 0.2W x 1000 pcs
- Light angle: 60° / 110°
- Initial luminous flux and efficiency: 58,898 lm, 61.28 lm/W
- Input voltage: 100-240V, 50/60Hz; input power: 1250W; power factor: 0.98
- Protection rating: IP20
- Fixture dimensions: 391 x 152 x 291mm; net weight: 11 kg
- Lifespan: 50,000 hours
- Control channels: 23 (Stand); 138 (RGB); 16 (SIMP); 8+130 (RGB); 61 (PixDim)
Additional Details
| Ships From: | Canada |
| Manufacturer: | Other |
| Condition: | Good |
| Item #: | 62060 | Brokered |
| Tags: | Leds, Effects, Led effects/efx, Led wash, Strobes |
- Central white LED strobe tube is divided into 10 independently controlled segments
- Surrounding RGB LED panels provide 40 individually controlled pixel sections
- Operates as a high-output strobe, RGB wash, or pixel-mapped effects fixture
- Multiple fixtures can be linked horizontally to create expanded bitmap effects
- Motorized tilt adds movement to strobe, wash, and pixel animations
- 16-bit dimming supports smooth fades and precise intensity control
- Built-in effects provide adjustable timing, direction, shapes, gradients, and background dimming
- Product Type: RGB and white LED strobe fixture with motorized tilt
- White LED Source: 10W x 180 pcs LEDs, 6500K
- RGB LED Source: 0.2W x 1000 pcs RGB LEDs
- White Strobe Segments: 10
- RGB Pixel Segments: 40
- Lifespan: 50,000 hours
- Light Angle: 60° / 110°
- Initial Luminous Flux and Efficiency: 58898 lm, 61.28 lm/W
- Dimming: Optical domain dimming, 65536 dimming accuracy
- Strobe Frequency: 1 - 25 Hz
- Tilt: 182°, accuracy of 0.94°/step, fine-tuning 0.0037°
- Control Channels: 23 (Stand); 138 (RGB); 16 (SIMP); 8+130 (RGB); 61 (PixDim)
- Control Protocols: DMX512, ArtNet, sACN
- DMX Connections: 3-pin XLR input/output, 5-pin optional
- Network Connections: RJ45 input/output
- Input Voltage: 100-240V, 50/60Hz
- Input Power: 1250W
- Power Factor: 0.98
- Protection Rating: IP20
- Fixture Dimensions: 391 x 152 x 291mm
- Net Weight: 11 kg
- (1) 1200C Strobe
- Power cables are not included
