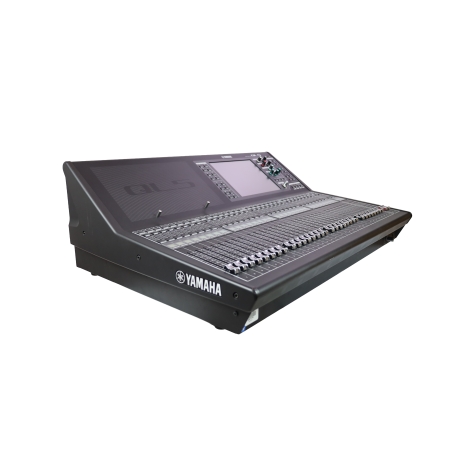

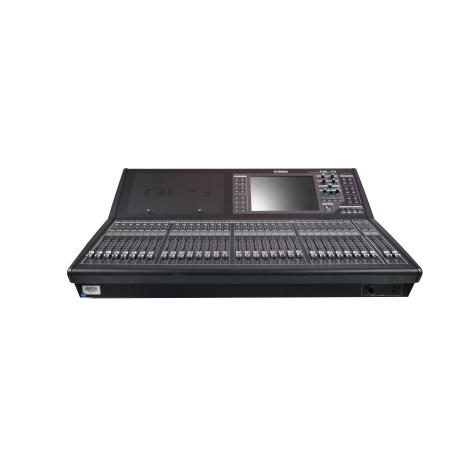

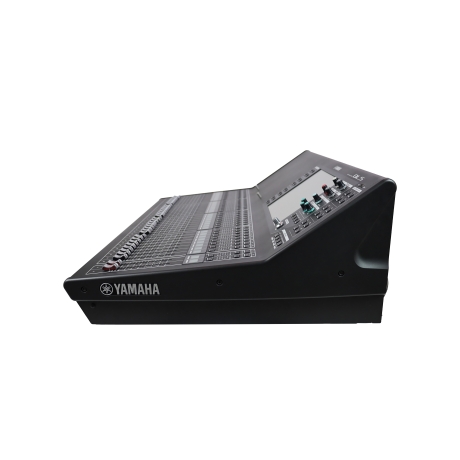

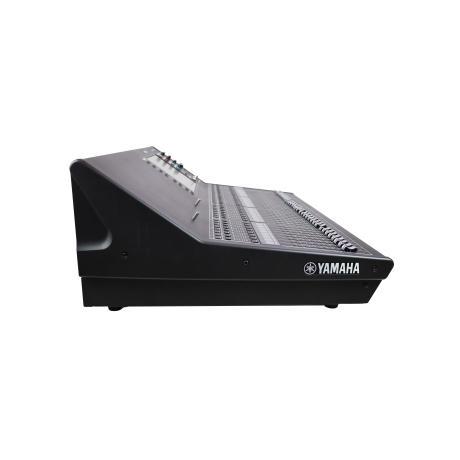

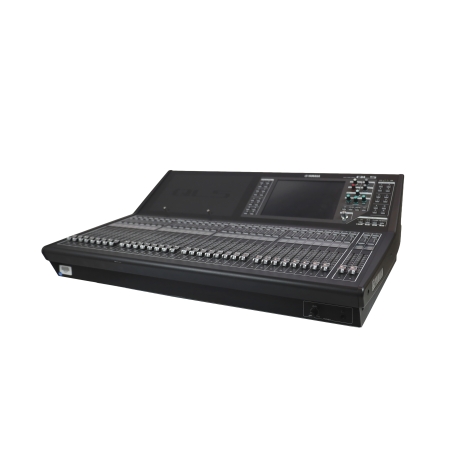

Yamaha QL5 64 Channel Digital Mixing Console
Description
These mixers may show signs of heavy wear but are in good working condition. A road case is included.
The Yamaha QL5 64 Channel Digital Mixing Console is built to create high-quality, refined live-sound environments for venues, touring, houses of worship, and broadcast-style productions. The QL series carries forward the digital evolution of a broad array of advanced concepts that help make the console easy and intuitive to use, so you can move quickly from setup to a polished mix.
Mixing Power for Complex Shows
With 64 mono and 8 stereo mix channels, the QL5 is designed for demanding input counts while keeping workflow organized. For monitor and system routing, it provides 16 mix busses and 8 matrix busses, with input-to-matrix support for flexible feeds to zones, delays, recording, or broadcast mixes.
Built-In Effects and Practical System Flexibility

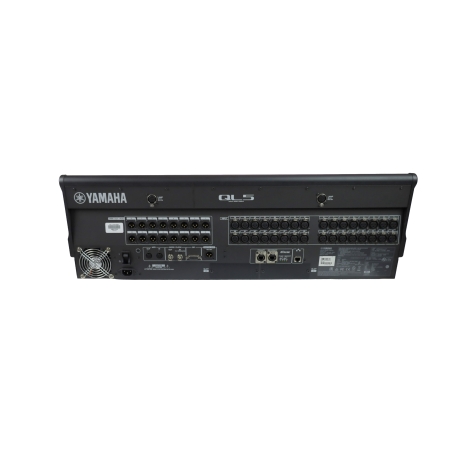

The built-in effect processor can accommodate demanding situations at a high level of quality, while retaining the flexibility necessary to configure a system that meets your needs. Local connectivity includes 32 inputs and 16 outputs, making it straightforward to build a capable standalone rig or integrate the console into a larger setup.
Control Surface and Performance Specs
The console features a 32 + 2 fader layout (including master) with 100mm motorized faders for fast recall and consistent control across scenes. Low latency signal handling delivers less than 2.5ms (INPUT to OMNI OUT at 48kHz), supporting responsive monitoring and tight timing in live applications.
Audio performance is engineered for clean, reliable operation, including a frequency response of +0.5, –1.5dB from 20Hz to 20kHz (referenced to +4dBu output at 1kHz), total harmonic distortion under 0.05% (20Hz to 20kHz at +4dBu into 600Ω), and typical dynamic range up to 112dB (DA converter). Crosstalk is rated at –100dB at 1kHz between adjacent channels (input gain minimum) to help maintain separation in dense mixes.
Physical Details
The Yamaha QL5 measures 32.59 x 10.71 x 22.17 in (828.4mm x 272mm x 563mm) and weighs 48 lbs (21.8 kg), balancing a full-size surface with manageable deployment for installed or mobile systems.
Additional Details
| Manufacturer: | Yamaha |
| Condition: | Fair |
| Model: | QL5 Mixer |
| Item #: | 62211 | Brokered |
| Tags: | Pro audio, Consoles, Switchers, mixers & das |
- Mix channels: 64 mono, 8 stereo
- Busses: 16 mix, 8 matrix (Input to Matrix supported)
- Local I/O: 32 in, 16 out
- Fader configuration: 32 + 2 (Master)
- Signal Delays: Less than 2.5ms, INPUT to OMNI OUT, Fs= 48kHz
- Fader: 100mm motorized, Resolution=1024steps, +10dB to –138dB, –∞dB all faders
- Frequency Response: +0.5, –1.5dB 20Hz–20kHz, refer to +4dBu output @1kHz, INPUT to OMNI OUT
- Total Harmonic Distortion: Less than 0.05% 20Hz–20kHz@+4dBu into 600Ω, INPUT to OMNI OUT, Input Gain= Min.
- Hum & Noise: –128dBu typ., Equivalent Input Noise, Input Gain= Max., –88dBu, Residual output noise, ST master off
- Dynamic Range: 112dB typ., DA Converter, 108dB typ., INPUT to OMNI OUT, Input Gain= Min.
- Crosstalk @ 1kHz: –100dB, adjacent INPUT/OMNI OUT channels, Input Gain= Min.
- Dimensions: 32.59 x 10.71 x 22.17 in / 828.4mm x 272mm x 563mm
- Weight: 48 lbs / 21.8 kg
- (1) QL5 Digital Mixing Console
- (1) Power Cable
- (1) Road Case
