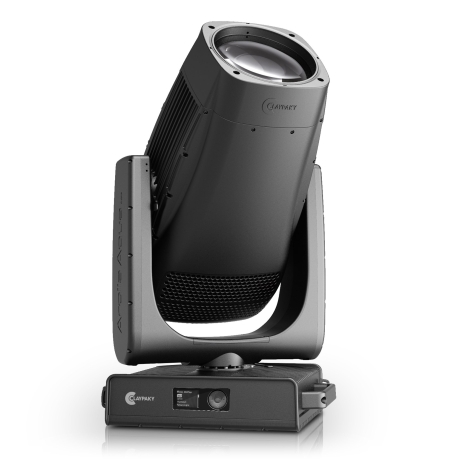

NEW Clay Paky Arolla Aqua HP

Bring your biggest creative ideas to stunning life. Arolla Aqua HP (Unico LED) is the most powerful white LED moving head in the Arolla Aqua family and the brightest IP66 fixture on the market in its category (1400W and over 66,000 lumen output), engineered for long-throw projection and bold aerial effects in any environment. Its custom optical platform and extra-large 220mm front lens help maintain sharpness and beam integrity over distance, from touring stages to stadium-scale rigs and permanent outdoor installs.

Long-Throw Optics and Zoom Flexibility

Arolla Aqua HP is built to cover both tight beam work and wide coverage without swapping fixtures. The standard zoom range runs from 3.5° to 55° for everything from piercing aerial looks to broad, immersive washes. When you need maximum punch and definition over extreme distances, long-throw mode (0.5° to 11°) delivers ultra-narrow, ultra-solid beams and crisp gobo projection.

Color, Framing, and Texture Tools for Design Control

For precise color rendering and matching across a rig, the fixture pairs CMY + linear CTO mixing with dual color wheels for fast, repeatable looks. Beam shaping is handled by an Advanced Four-Plane Framing System with macros, including the signature “Total Curtain” effect for accurate, instant blackout using individual blades. For added motion and depth in the air or on scenic surfaces, the creative system includes dual rotating gobos, prisms, an animation wheel, and Lineguard frost.

IP66 Reliability for Outdoor and Demanding Environments

Designed for all-weather use, Arolla Aqua HP carries an IP66 rating and incorporates advanced dehumidification plus SunSafe Protection to help maintain consistent output and operation in challenging conditions. Absolute Position sensors and an Advanced Electronic Brake support stable positioning and reliable repositioning without recalibration, useful for high-precision focusing and repeatable cues.

Light Engine, Output, and Practical Performance

• Light source: cold white LED
• Power: 1400W
• Output: 66,000 lm (Integrating Sphere)
• Color temperature: 6500K
• CRI: up to 70, with selectable filter for CRI up to 88
• LED life expectancy: 20,000 hrs (L70)
• High efficiency optical system, 220mm front lens diameter

Control, Networking, and Integration

The fixture is ready for modern lighting networks and wireless workflows, supporting DMX, Art-Net, RDM, sACN, and CRMX (TiMo FX) (Lumen Radio). Connections include locking 5-pin XLR IN/THRU for DMX/RDM, RJ45 IN/OUT for Ethernet, and a PowerCon True1 power connector. A built-in web server supports configuration and monitoring over the network. One control mode provides 43 DMX channels for detailed feature access.

Size and Handling

• Weight: 56.9 kg (125.4 lbs)
• Base dimensions: 502 x 470 mm (19.7 x 18.5 in)
• Height with vertical head: 885 mm (34.80 in)
