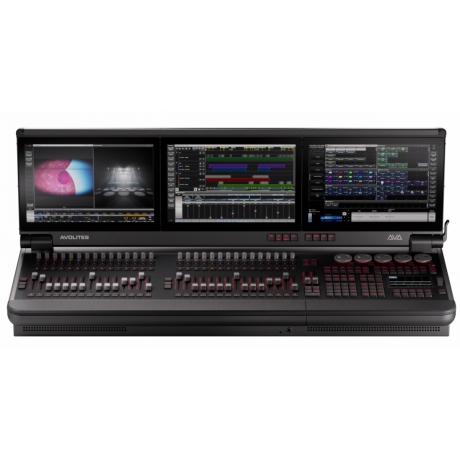

NEW Avolites Diamond 7-330 Console

The Avolites Diamond 7-330 Console is a high-capacity lighting control console built for demanding live events, touring, broadcast, and permanent installations. Running on the Avolites Titan software platform, it provides extensive hands-on playback control, bright multi-touch displays, and robust connectivity for large fixture counts and timecoded shows.

Hands-on playback control for complex shows

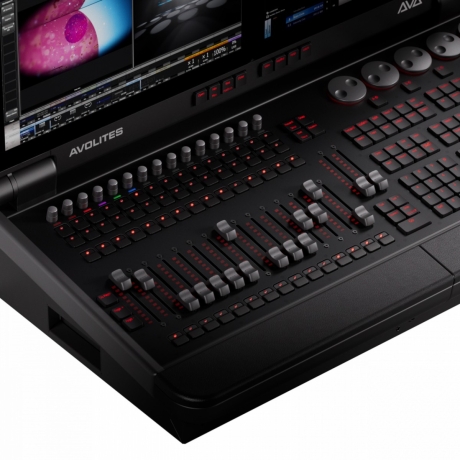

Designed for fast programming and confident operation, the Diamond 7-330 features 30 motorised touch-sensitive faders with designer fader caps and RGB fader indicators, plus a dual, motorised, touch-sensitive master cue list fader with 9 control buttons. For parameter control and live adjustment, you get 30 ultra-high resolution touch-sensitive playback encoders with push function, along with 5 custom RGB backlit attribute encoders. Playback and timing access is reinforced by 120 C&K playback function buttons with positive haptics and designer button caps.

Bright multi-touch screens and operator-focused workflow

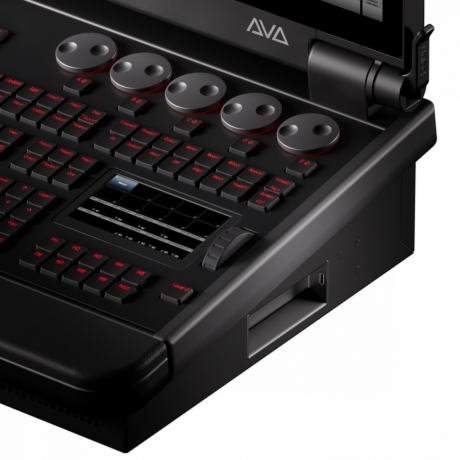

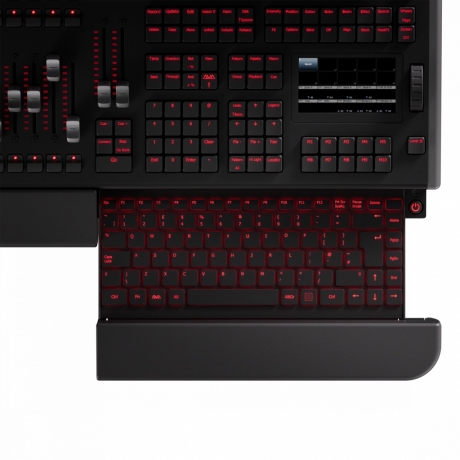

Three 14” 850 nits 1920 x 1200 capacitive touch main screens with adjustable brightness provide clear visibility in bright FOH environments. A dedicated 4.3” 850 nits 800 x 480 capacitive touch macro and workspace screen adds quick access to macros and workspace controls. Operator conveniences include a full custom backlit QWERTY keyboard in a drawer, a dedicated level wheel with onscreen level indication, and an LED desk reading light in the panel above the screens and over the rear panel.

Connectivity for DMX, networking, and timecode

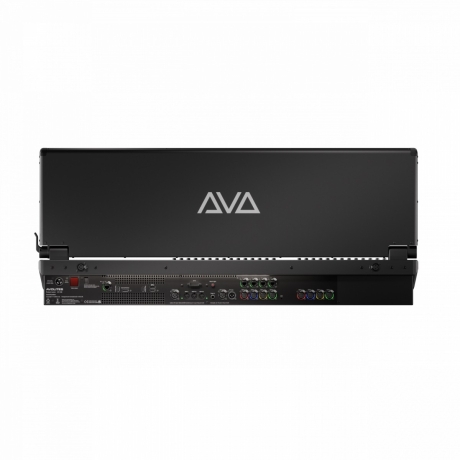

For direct outputs, the console includes 8 x Neutrik 5-pin XLR, optically and galvancially isoclated, with halo assignement indicators. Networking is supported via 4 x Neutrik XLR on the primary network port and 1 x Neutrik XLR on the secondary network port, internally switched and managed. Show control integration includes SMPTE RTU Timecode in and Loop out via 3 pin XLR with transformer isolation, and GPIO with 4 inputs and 4 outputs on a 15 Pin D sub connector. The Diamond 7-330 also supports 1 x additional external DisplayPort 1920 x 1080 touchscreens for expanded workspace.

Performance capacity and system scaling

Built for large rigs, the system supports 16,384 DMX slots per device and 32,768 DMX slots per system, with a maximum of 32,000 fixtures (as specified). This makes it well-suited for multi-universe productions where programming depth and output scalability matter.

Touring-ready construction and transport-friendly design

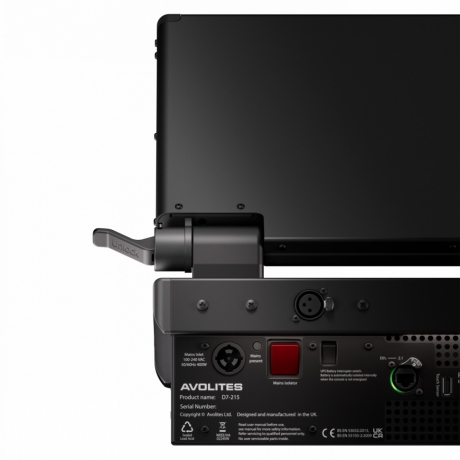

The all-aluminium construction helps reduce weight while maintaining durability. A clam shell LCD panel design reduces transport size, using a positive locking mechanism with adjustable screen panel articulation in 6 degree steps from – 90 to 155 degrees from vertical. The console also features a comfortable armrest, flush-mounted screens, and exclusively manufactured button caps, fader caps, encoder knobs, encoder wheels, and level wheel.

Physical specifications

• Dimensions (Screens Up): 1070 x 440 x 240 mm
• Dimensions (Screens Down): 1070 x 440 x 160 mm
• Weight: 32 kgs (70 lbs)
